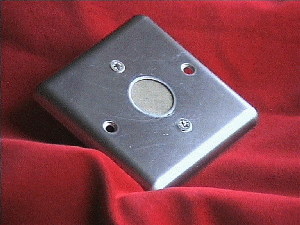

PHMK single gang surface mounted Microphone Specification


Powering: Dynamic
Output: Low impedance 200 ohm

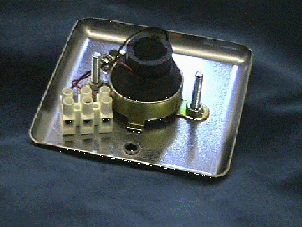

Connection: 3 pin terminal block (with wire protectors)
Sensitivity: Nominal 12.0mV/Pa
Response: 60Hz to 15kHz
Dimension: Std face plate 85mm square (single gang)
25mm behind wall surface
8mm in front of wall surface
Colour: Lacquered chrome
Price £56.14 + VAT + carriage
Available from
BRIDGE MICROPHONES
172 Wadsley Lane
Sheffield
England
S6 4EE
Tel +44 114 285 6540
FAX +44 87 00 94 00 57
Mobile +44 7774 782 503
email sales@bridgemics.co.uk
Internet http://www.bridgemics.co.uk
November 2001
